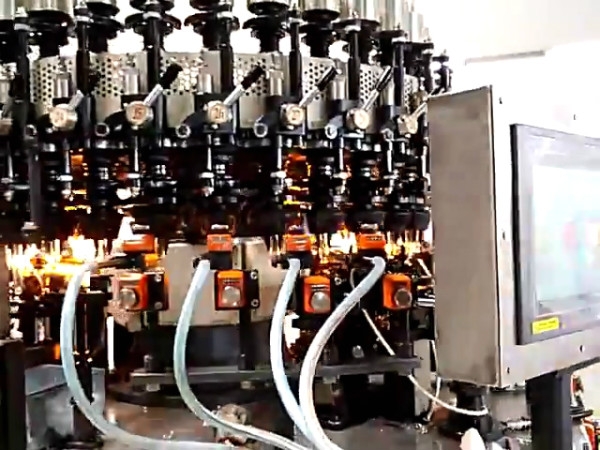

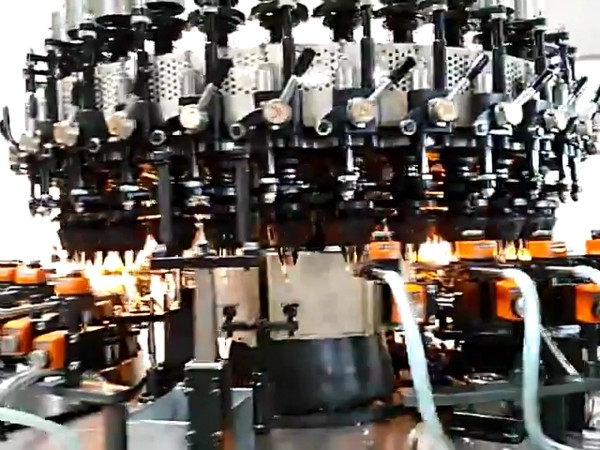

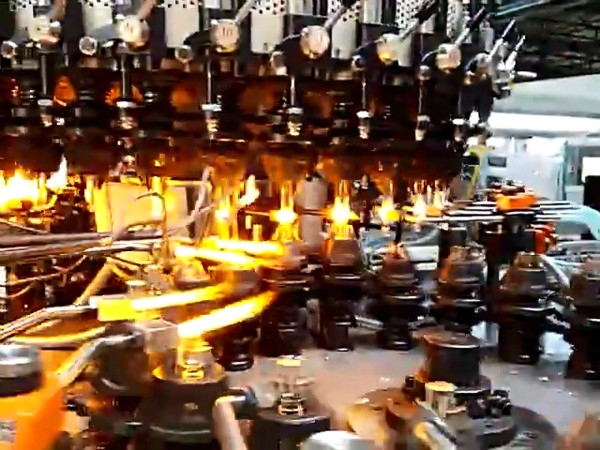

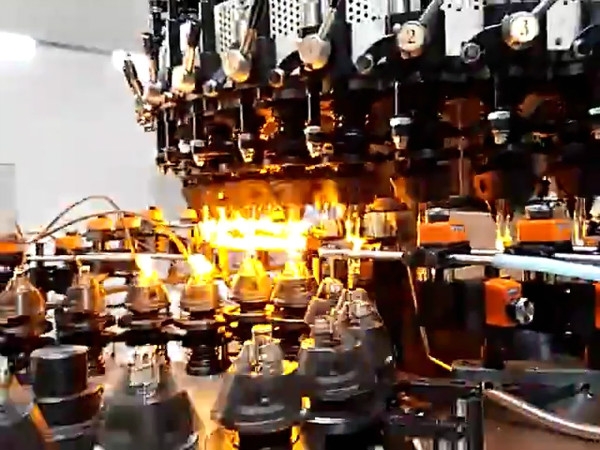

32-head Servo Fully-digital Vial-making Machine

We have firstly develop 16 head and 32 head servo fully digital vials machine worldwide. The ZP64Cw is a high-speed vial forming machine, perfect for the production of large batches. It has 32 in part A, 22 stations in Part B.
Introducing the ZP64Cw, a groundbreaking innovation in vial manufacturing! We‘re proud to be the pioneers behind the world‘s first 16-head and 32-head servo fully digital vial machines. Designed for high-speed production of large batches, the ZP64Cw boasts 32 stations in Part A and 22 stations in Part B. It‘s the ultimate solution for efficient vial forming. Stay ahead in the industry with our cutting-edge technology.

OTHER NAMES:

32 Station Automatic Glass Vial Machine

32 Head Fully Digital Vial Forming Machine

Automatic Vial Production Line

Glass Vial Production Machine

Automatic Glass Vial Forming Machine

Vertical Rotating Vial Machine

Features&Specification

> Fully controlled by PLC and servo motor.

> digital –control gas volume ratio and the digital working-station positioning

>The capacity is more than that of 2 sets of 16-head vial machines, and just need one set of tube loader, and cover a small area.

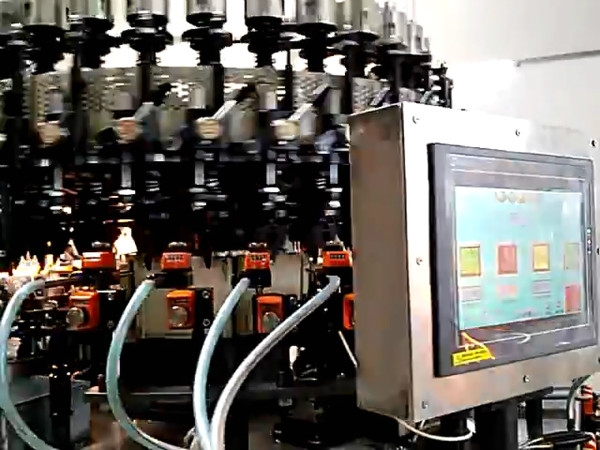

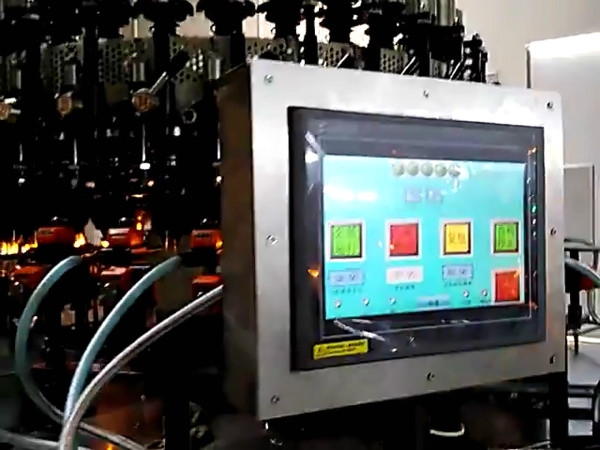

ZP64CW is totally controlled by PLC and servo motor. The functions are realized by digital-control touch screen operation. Besides, the digital –control gas volume ratio and the digital working-station positioning assure of convenient operation and high precision and high stability. The capacity is more than that of 2 sets of 16-head vial machines, and just need one set of tube loader, and cover a small area.

Item		Unit	Parameter
Number of station		station	32 stations in part A, 22station in part B
Vial Output Efficiency		Pcs/hour	2500-3500
Size of Vial		Outer of Diameter(mm)	⌀12-24
		Height of vial Body(mm)	25-80
		Inner Diameter of Neck (mm)	⌀6-20
Frequency Conversion Motor		Type	YR100L-6
		Power(KW)	1.5
		Voltage(V)	380
		Rotation(r/min)	940
Servo Motor for Part-A		1 Set Motor Power（KW）	2 KW
Servo Motor for Part-A		Voltage(V)	220V
Servo Motor for Part-B		1 Set Motor Power（KW）	1
Servo Motor for Part-B		Voltage(V)	220V
Servo Motor for Tonger		5 Set Motor Power（KW）	0.4
Servo Motor for Fix Vial Height		1 Set Motor Power（KW）	0.4
Servo Motor for Opening Chuck in Part- A		1 Set Motor Power（KW）	0.4
Servo Motor for Opening&closing Chuck in Part- B		1 Set Motor Power（KW）	0.4
Servo Motor for Chuck Rise and Fall in Part-B		1 Set Motor Power（KW）	0.4
Servo Motor for Opening&Dropping in Part-B		1 Set Motor Power（KW）	0.4
Machine Size(MM)			220012501800
Assemble Size(MM)			2200*1250
Weight for machine(KG)			4700
Air Pressure (Reference Only)	Gas (Mpa)		0.012
	Natural Gas (Mpa)		0.012
	Liquid Gas (Mpa)		0.05
	Oxygen (Mpa)		0.014
	Air (Mpa)		0.02
Consumption (Reference Only)	Gap (M³/hour)		5-6
	Natural Gas (M³/hour)		2-2.5
	Liquid Gas (M³/hour)		1.4-2
	Oxyge (M³/hour)		11/12-20
